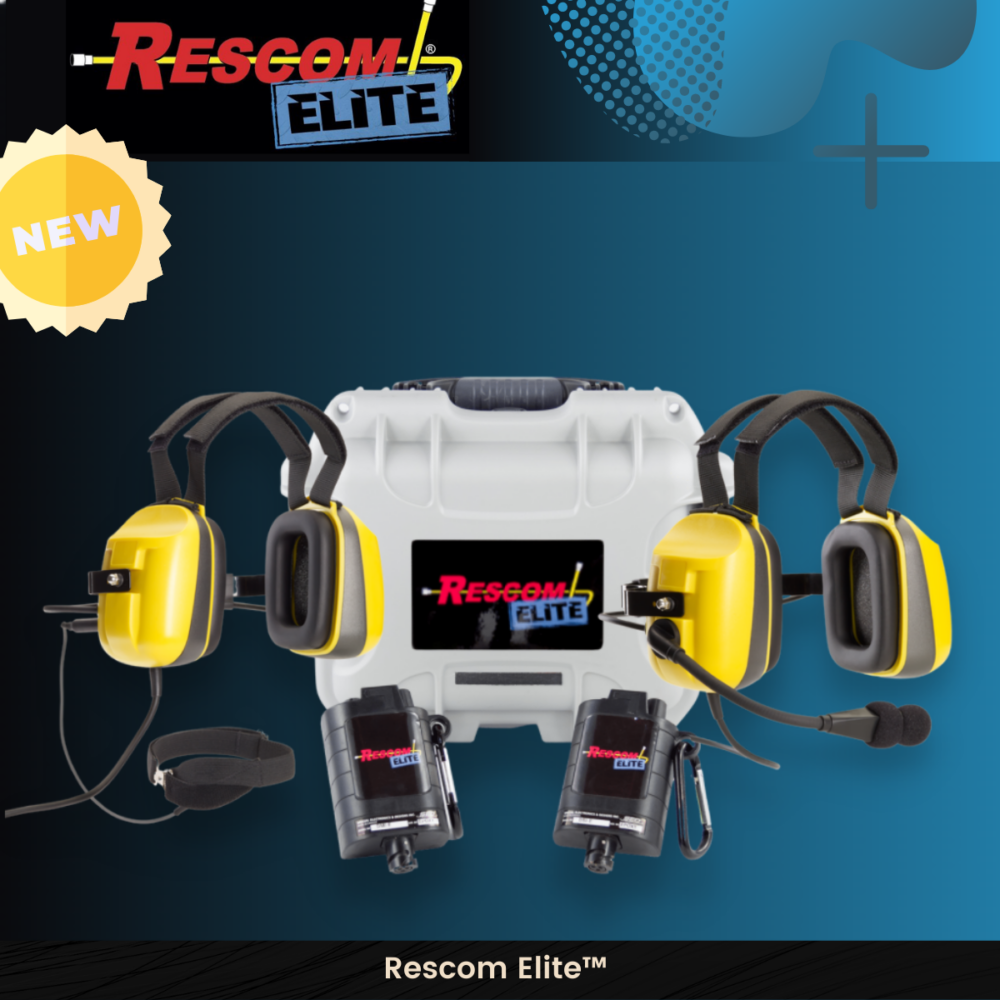

Rescom Elite® is an instantly deployable, Intrinsically Safe, hardline system designed to provide clear, effective, and continuous communication for a confined space or a high-angle rescue scenario.
With a new & sleek plastic housing and a no-nonsense design, this New Generation Rescue Communication System is manufactured by SED to replace the legendary Rescom® Modular™. These systems typically consist of:

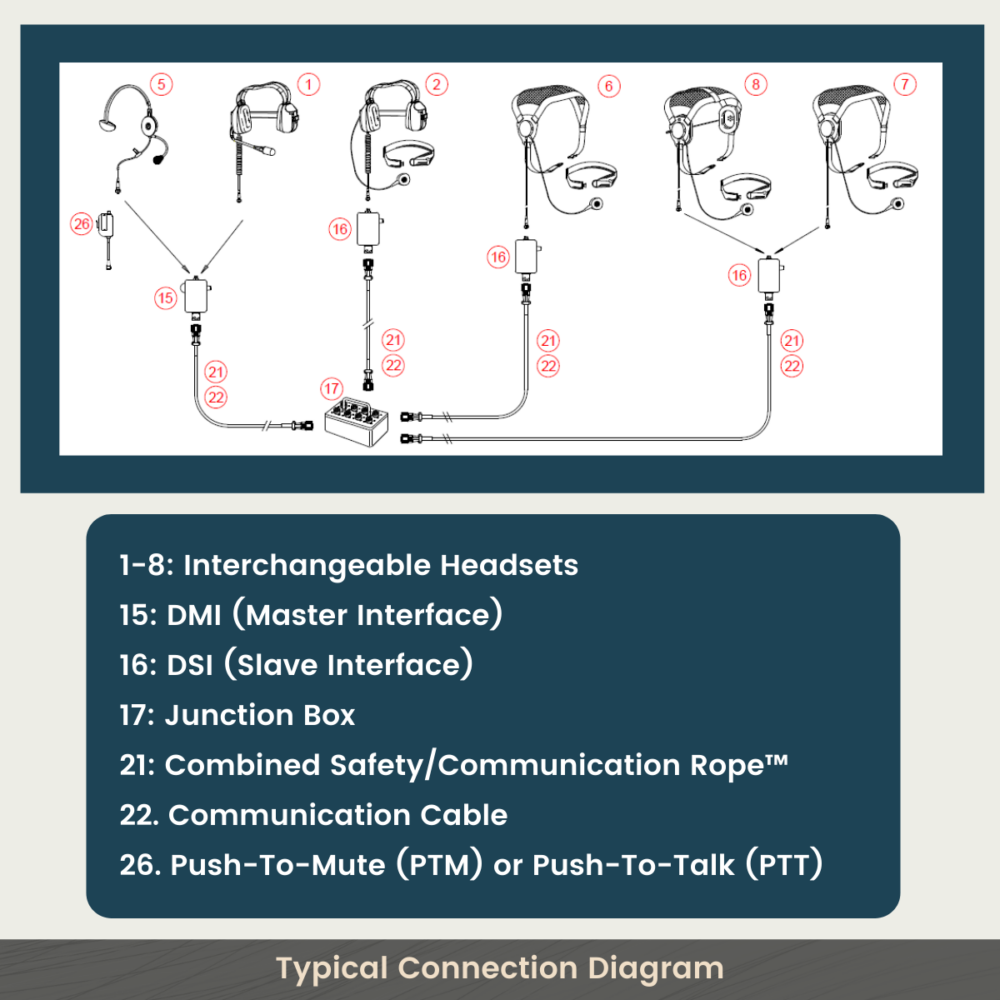

A Primary Interface (DMI) with a Headset for the Attendant
Two or more Dependent Interface units (DSI) with Headsets for Entrants
The belt-mounted Primary Interface (DMI) provides centralized power for all other Interface Units (DSI). The entire system operates on low voltage and can be powered by 3 AA batteries, which are housed in the DMI unit.The Combined Safety/Communication Rope™ is a unique SED design and is used as a primary or secondary lifeline in rescue scenarios, setting the standard for communication lifelines for over 37 years.
What is Intrinsically Safe?
Intrinsically Safe means that the system is incapable of causing an explosion or being a source of ignition in the presence of potentially explosive or combustible materials and gases.
In other words, the equipment and wiring are incapable of releasing sufficient electrical or thermal energy under normal or abnormal conditions to cause the ignition of a specific hazardous atmospheric mixture in its most easily ignited concentration.OSHA has many reports of fires caused by non-intrinsically safe systems.
Preventing fire and explosions is a top priority for all industries around the world!
What sets the Rescom Elite® Communication System apart from other hardline systems on the market
Our 10,000 lb. tensile strength NFPA-rated Combined Safety/Communication Rope™ contains built-in wiring, simplifying line management and thus, reducing the chance of User entanglement while working.
It has been tested to provide communication up to the point of rope failure at over 10,000 lb. load. This rope is ideal for Search and Rescue (SAR) personnel or Fire Fighters.SED’s Combined Safety/Communication Rope™ or Extension Cords provide clear, reliable communication for up to 4.8 km (3 miles) per Headset.Connectors and ropes can also be submerged in water up to 10m (35’).
DuraCORE™ Cable with a SEDFLEX™ jacket which makes the cables more rugged than average communication cables in the market.
How to choose the appropriate Kit and accessories?
You can either choose a pre-packaged kit or select specific equipment to personalize your kit.The kits are expandable up to 10-Man, but 5-Man and 7-Man Kits have been the most popular choice by rescuers.
Each kit consists of the following:
Headsets

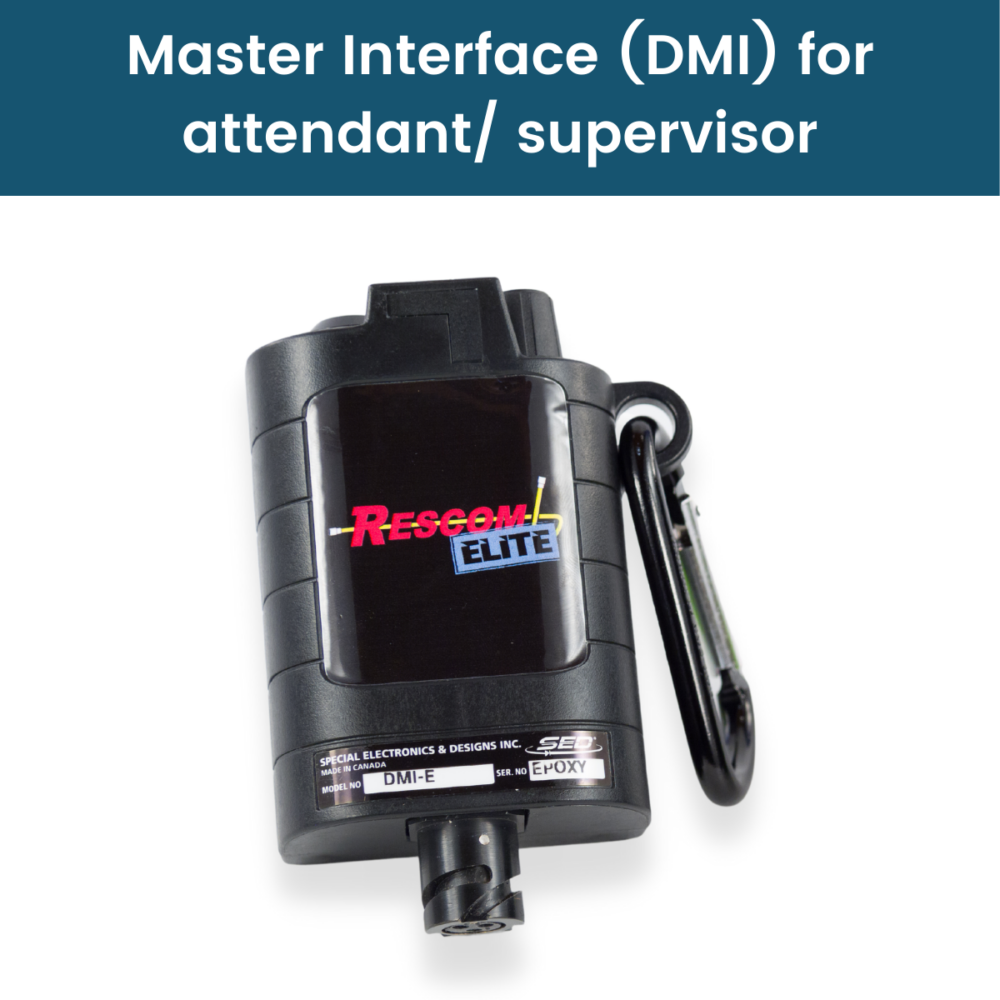

A Primary Interface (DMI)

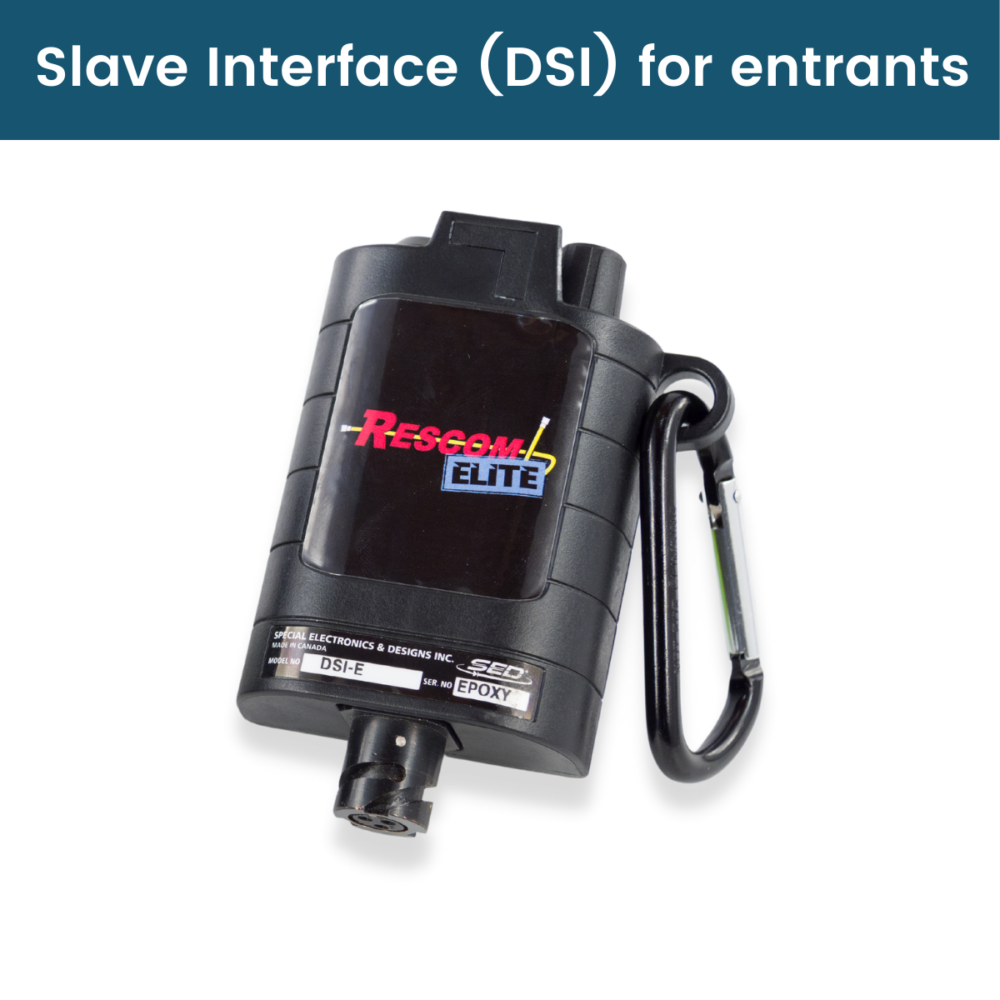

Dependent Interface(s) (DSI)
Combined Safety/Communication Rope(s)™ and/or DuraCORE™ Communication Cable(s)
Rope Bags
Equipment Case and a Junction Box (available with 2-8 connectors, as per User requirement)
5 Years (1 Yr for Combined communication/safety rope™)
Encrypted
N/A
Applications
The Rescom Elite® system is a rescue communication system that is designed for high-angle rescue, confined space rescue, and collapse rescue. Other than rescue-type scenarios, it can also be used in the following applications:
Public Utilities – Tunnels, Water, Vaults, Boilers, Furnaces
Chemical Processing Plants – Storage Vessels, Pipes, Process Reactors, Tanks, Vats
Chemical Distillation Plants – Oxidation Tanks, Chemical Vats, Tanks
Telecommunications Providers – Underground Tunnels, Communication Towers, Crane
Maintenance – Sandblasting, Water Blasting, Welding, Clean-Up
Certifications
ISO 9001:2015 registered/ certified
The Rescom® Combined Safety/Communication rope™ is NFPA certified and is compliant with Class-7216 82 (File No.:1548278-224590)
Rescom® Elite™ system meets all OSHA safety standards for confined space entry
CSA and UL approved as per standard #C22.2 No.157-92 and UL #913 Seventh Edition (CSA File No. 224590-1669565)
Class I, Div. 1 Groups A, B, C, & D
Class II, Div. 1Groups E, F, G
Class III Div. 1, Gaseous Mines
IECEX
ATEX
Accessories
Junction Box (JBI Series) –Available in 2-8 ports and different mounting/carrying styles for wall, floor, ceiling or portable
V-mic (Victim Locator Mic) – A super sensitive Mic. used for victim location during a rescue
Acoustic Coupler – An Inter Operability Interface that allows an isolated interconnection between two intrinsically safe systems
Rope/Cable Coupler – Used to connect two Rescom communication ropes (21) or cables (22) together
Bulkhead Pass through – Allows connection through steel vessel or walls of thickness up to 1″. Ideal for aircraft fuel cell installation
T-Connector for DMI’s – Allows “Daisy Chain” of cable or rope connections, Can be attached directly to DMI or DSI or Junction Box
Push-To-Mute (PTM) or Push-To-Talk (PTT)Switch – Ideal for Supervisors. Can be Locked On or used as a momentary action
Portable Cable Reel – Built-in junction box for continuous communication with pneumatic tires for uneven surfaces
Rescom® Rope Bag – Sturdy fabric with a clear pouch for rope logs, carry handle and shoulder strap
Combined Safety/Communication Rope™ – This rope can be used as a primary or secondary rescue line. Can be submerged 35ft in water. It is rated and approved, as a 2-man rope, which is 9000 lbs but has a break strength that is normally over 10000 lbs.
DuraCORE™ Communication Cable – A rugged DuraCORE™ cable with a SEDFLEX™ jacket ensures flexibility in harsh environments
Hygiene Kits – A kit of windscreens, gel or foam-filled cushions. Should be changed frequently to maintain hygiene.
Wind Screens – An essential replacement component for Boom Microphones

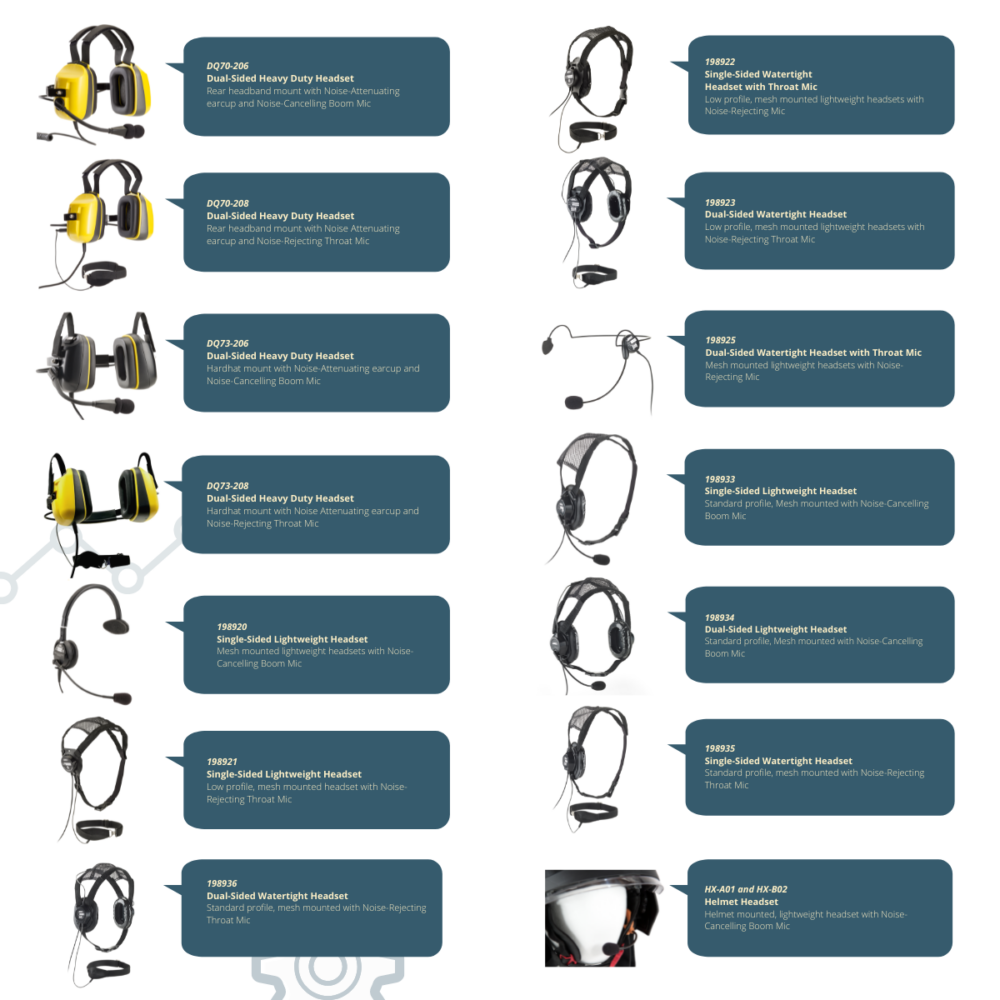

Compatible Headsets
All models are Intrinsically Safe. All plastics meet the requirements for ESD dissipation as per Intrinsic Safety requirements:

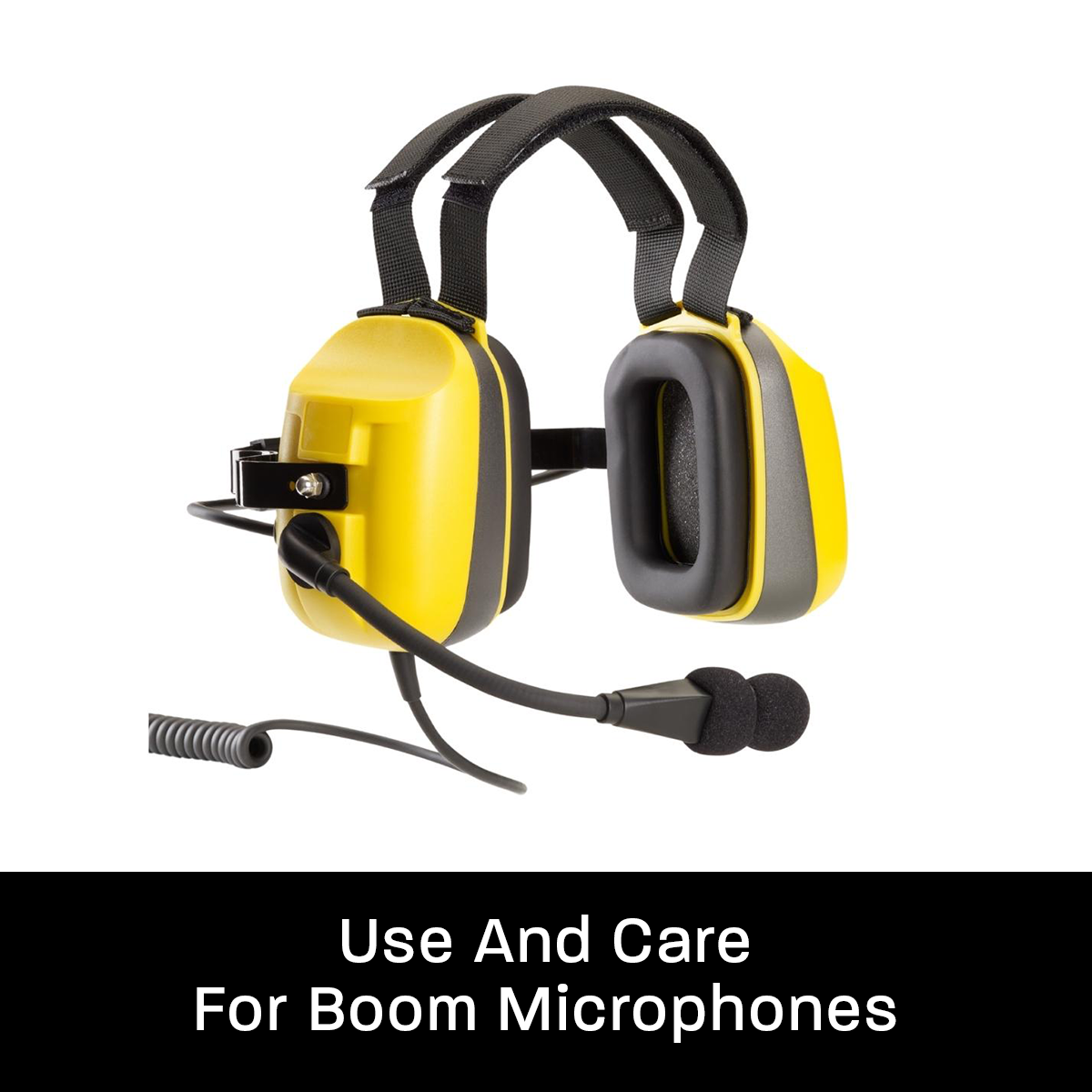

DQ70-206: Headband mounted, Dual-Sided Heavy-Duty Headset with a Noise-Cancelling Boom Microphone

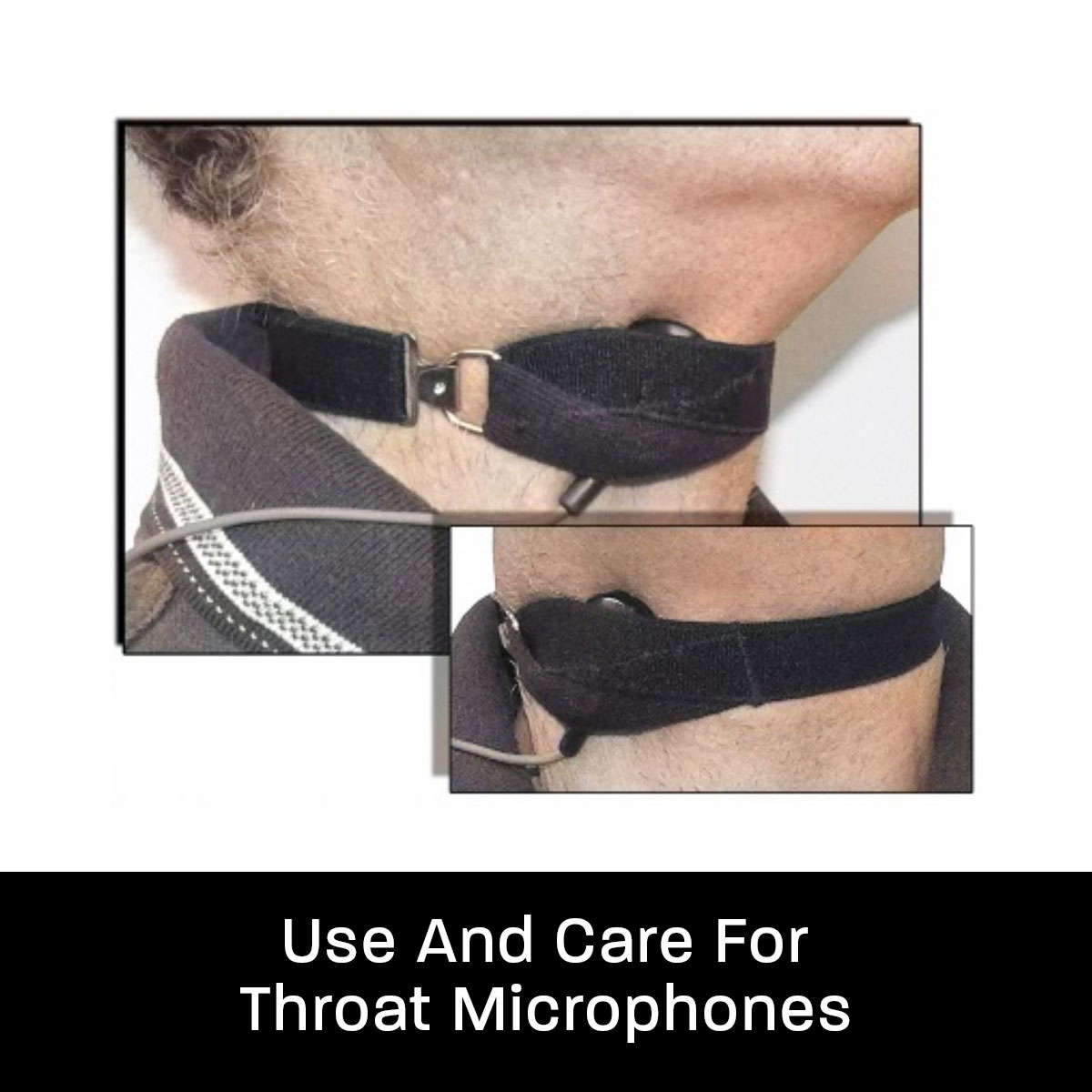

DQ70-208: Headband-mounted, Dual-Sided Heavy-Duty Headset with a Noise-Rejecting Throat Microphone
DQ73-206: Hardhat mounted, Sided Heavy-Duty Headset with a Noise-Cancelling Boom Microphone
DQ73-208:Hardhat mounted, Dual-Sided Heavy-Duty Headset with a Noise-Rejecting Throat Microphone
198920: Single-Sided Lightweight Headset with a Noise-Cancelling Boom Microphone
198921: Mesh-mounted, Single-Sided, Low-profile headset with a Noise-Rejecting Throat Microphone
198922: Mesh-mounted, Watertight, Single-Sided, Low-profile headset with a Noise-Rejecting Throat Microphone (The headset can be immersed in 50cm WP for cleaning)
198923: Mesh-mounted, Watertight, Dual-Sided, Low-profile headset with a Noise-Rejecting Throat Microphone (The headset can be immersed in 50cm WP for cleaning)
198925: Rear Neckband, Single-Sided, Ultra-Lightweight headset with a Noise-Cancelling Boom Microphone
198933: Mesh-mounted, Single-Sided, Standard profile headset with a Noise-Cancelling Boom Microphone
198934: Mesh-mounted, Dual-Sided, Standard profile headset with a Noise-Cancelling Boom Microphone
198935: Mesh-mounted, Watertight, Single-Sided, Standard profile headset with a pre-amplified
HX-A01: Rescue Helmet mount, Single-sided with a Noise-Cancelling Boom Microphone (Designed for Rosenbauer Heros Titan Pro Helmet) *
HX-B02: Rescue Helmet mount, Single-sided with a Noise-Cancelling Boom Microphone (Designed for Pacific F15 Helmet) *
*Can be customized according to customer choice of rescue helmet
Kits
All Rescom Elite kits include a carrying case for headsets and belt-mounted interfaces. Kits may be expanded to accommodate up to 10 users per system.
Rescom® Elite™ Kits with DuraCORETM Communication Cable
Rescom Elite® Kits with DuraCORE™ Communication Cable
CABLE KITS
Cable
DMI
DSI
198902
198913
Junction Box
Equipment Case
RKE2MC-030
2 Man
100' x 1
1
1
1
1
6 Port
Medium
RKE2MC-091
2 Man
300' x 1
1
1
1
1
6 Port
Medium
RKE3MC-030
3 Man
100' x 2 + 50' x 1
1
2
1
2
6 Port
Medium
RKE3MC-091
3 Man
300' x 2 + 50' x 1
1
2
1
2
6 Port
Medium
RKE5MC-030
5 Man
100' x 4 + 50' x 1
1
4
1
4
6 Port
Medium
RKE5MC-091
5 Man
300' x 4 + 50' x 1
1
4
1
4
6 Port
Medium
RKE7MC-030
7 Man
100' x 6 + 50' x 1
1
6
1
6
8 Port
Large
RKE7MC-091
7 Man
300' x 6 + 50' x 1
1
6
1
6
8 Port
Large
Rescom® Elite™ Kits with Combined Safety/Communication RopeTM
Rescom® Elite™ Kits with Combined Safety/Communication RopeTM
